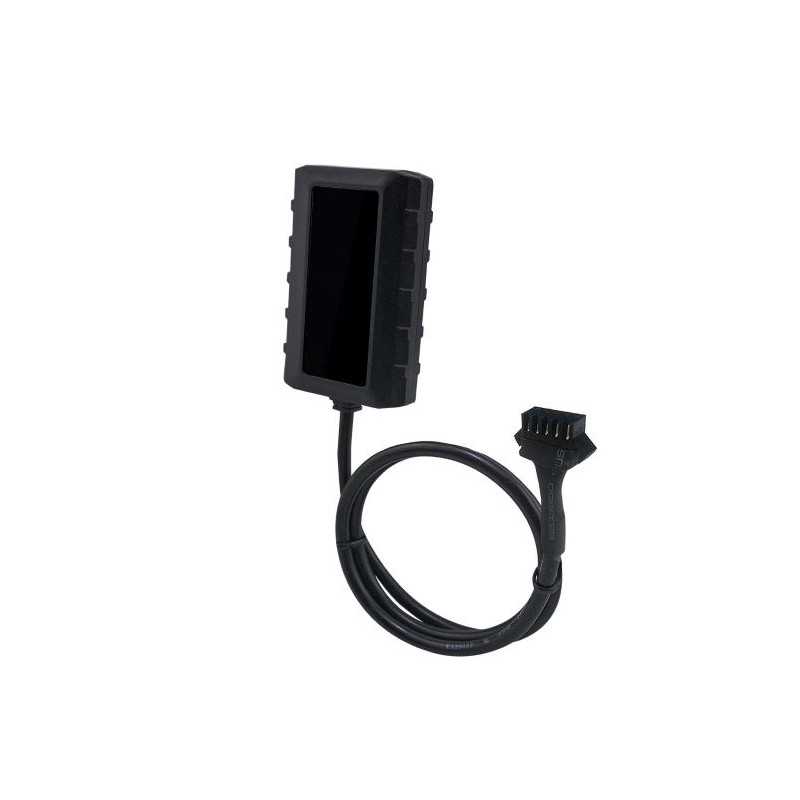

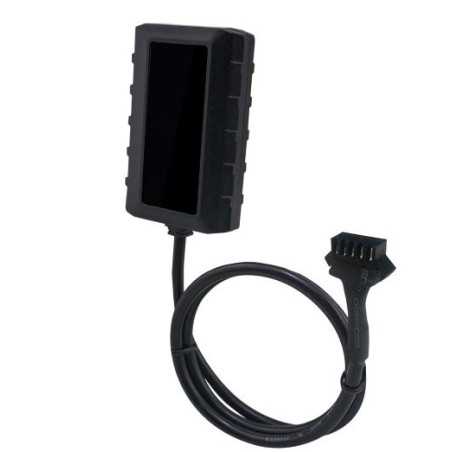

GV57CEU LTE Cat 1 waterproof tracker supporting wide voltage and BLE
€97.00
Tax excluded
Delivery:
Last items in stock
LTE Cat 1 waterproof tracker supporting wide voltage and BLE

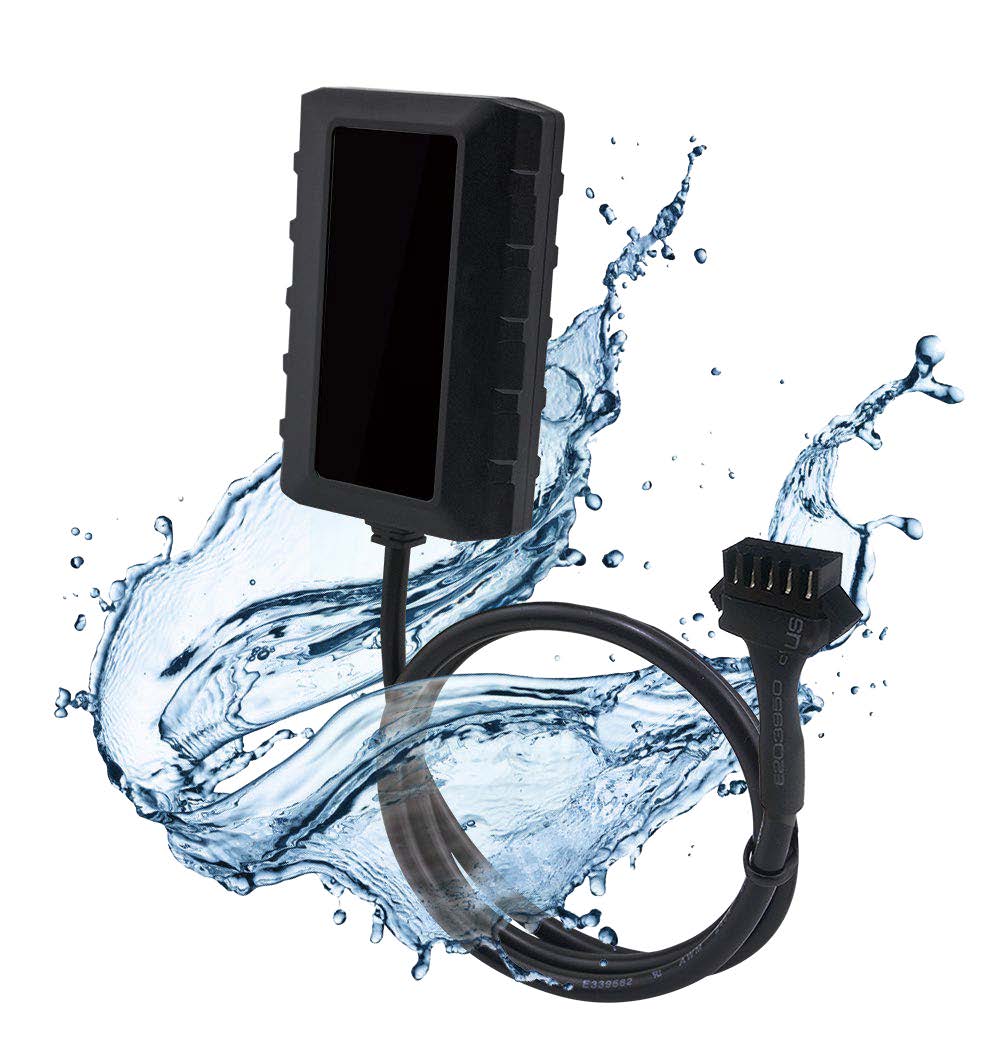

The GV57CEU is a LTE Cat 1 telematics device that can be used for a wide range of transportation monitoring applications such as micromobility, stolen vehicle recovery, automobile finance and logistics. The device’s IP67-rated waterproof casing design ensures long-term reliability in humid, harsh environments . Its wide operating voltage range of 9 ~90V also m'akes it is usable for a variety of electric vehicles, including e-Bikes, scooters, gol f cats, etc.
Related Products
The GV57CEU is suitable for a large range of applications.
Previous
Next
KEY FEATURES
- Network: LTE Cat 1 with 2G Fallback
- Protection degree: IP67 Waterproof
- Power Supply: 9 ~ 90 V DC
- BLE 5.2
- Compact Size
- Covert Installation
- Jamming Detection
- Scheduled Report
- Geo-fences
- Motion Detection
- Driving Behavior Monitoring
- Crash Detection & Accident
- Reconstruction
- Tw Alarm
- OTA Control
Environmental parameters
- Weight: 76g
- Dimensions: 84(L) x 50(W) x 16.6(H) mm
- Working Temperature range: -30℃ ~ +70℃
- Storage temperature: -40℃ ~ +80℃
- Battery: Li-Polymer, 190 mAh
Interfaces & inputs
- Digital Input 1 x positive trigger input for ignition detection
- Configurable Input 1 x configurable input for analog input (0V ~ 16V) or negative input
- Latched Digital Output 1 x digital output with internal latch circuit, open drain, 150 mA max drive current
- Cellular Antenna Internal only
- GNSS Antenna Internal only
- BLE Antenna Internal only

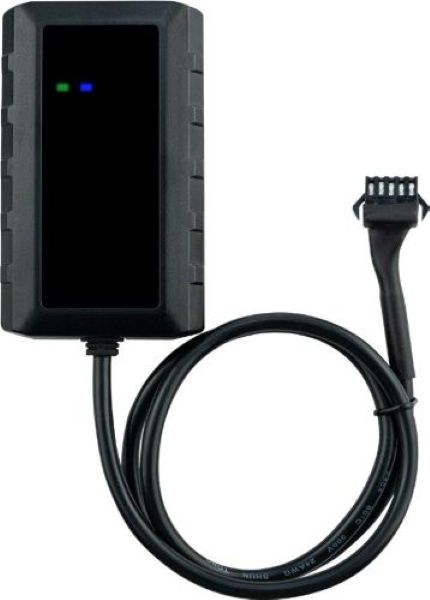

- LED Indicators CEL, GNSS
- Micro USB Interface Used for configuration, upgrade and debugging
Appearance
REGION
EMEA
Network / Operating Band
LTE Cat 1
- LTE-FDD: B1/B2/B3/B4/B5/B7/
- B8/B20/B28
- EGPRS:
- 850/900/1800/1900MHz
GNSS Type
High precision GNSS Receiver
Position accuracy (CEP)
Autonuos: < 2m
Certificate
CE
